- Place of Origin: China
- Brand Name: yichao
- Model Number: VP42
项 目Item | 内 容Content |
包装速度 Capacity | 约70包/分钟具体视包装膜质量及物料确定。 70 bag/min,it is according to quality of wrapping and supplies |
计量精度 Accuracy | ≤±1.5% |
制袋尺寸 Bag size | (L)60-300mm (W)90-200 mm |
最大包装膜宽 Film width | 420mm |
制袋形式 Bag type | 包装材料用卷膜，机器自动制袋为上封、下封加背面封口。 Pack with film, upper seal, lower seal and back seal by automatic bag making machine. |
计量范围 Filling range | 150-1300ml |
薄膜厚度 Film thickness | 0.04-0.09mm |
包装材料 Package material | BOPP/CPP，PET/AL/PE等可热复合材料 thermal composite material., likeBOPP/CPP, PET/AL/PE etc |
整套耗气量 Air consumption | 0.8Mpa 0.5m3/min |
整套设备总功率 Total powder | Z字机1KW 十四头称（1.3KW） 主机（3KW） 成品输送机（0.45KW）=5.75KW .045KW)=6.045KW |
电压 Voltage | 三相四线380V 50HZ Four wire three phase 380V 50HZ |
空压机 Air compressor | 不小于1立方 Not less than 1 CBM |

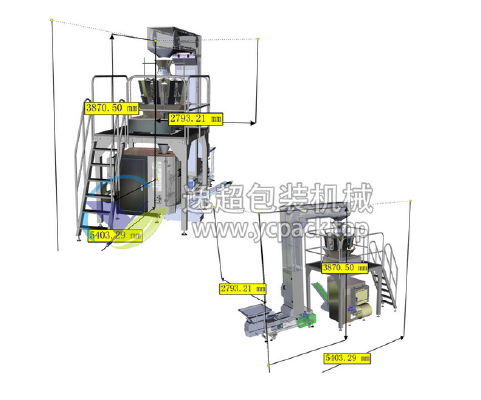

整套设备总高 Total height | 3.760米 3.760m |
